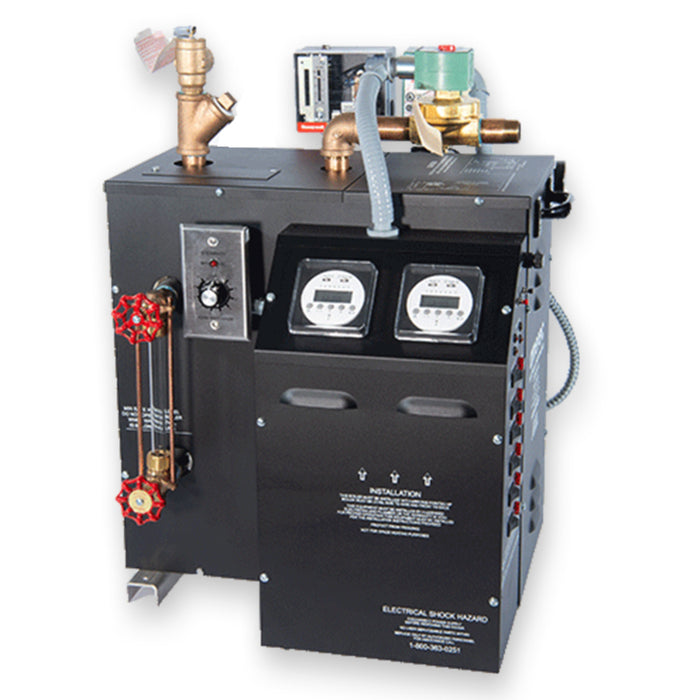

Amerec AI Series 24kW Commercial Steam Room Generator

The Amerec AI-24 electric steam room boiler features an ASME-certified pressure vessel for efficient operation, a water level sight glass, a temperature safety system, a 3-level water sensing system with low water cutoff, LED indicator lights with diagnostics, and a variety of other features. The AI-24 can power one or two large steam rooms with dimensions between 900 to 1,200 adjusted cubic feet (ACF).

Features and Specifications

Features:

• Black powder coated steel construction

• Pressurized vessel for instant steam

• Durable electronic components

• Low water cut-off with manual reset

• 3/4" drain port

• Room high limit temperature safety system

• Operating electronic high liit pressure control systems
• Sight glass
• Alarm circuit panic button
• ASME Safety valve
• ASME certified low-pressure operation vessel
• Optional D24/7 digital time clock can be used for both generator on/off settings and ADI-D Autodrain system

Specifications:

• WEIGHT - 125 lbs

• LENGTH / WIDTH - 17-1/2"
• WIDTH / DEPTH - 20-3/4"
• HEIGHT - 23-1/4"
• DIMENSIONS - 17-1/2"W x 20-3/4"D x 23-1/4"H
• KW - 24
• WATTS - 24000
• VOLTS - 208
  • PHASE - 1 / 3
  • AMPS - 116 / 68
• VOLTS - 240
  • PHASE - 1 / 3
  • AMPS - 101 / 59
• VOLTS - 480
  • PHASE - 3
  • AMPS - 29
• ROOM VOLUME (CU. FT.) - 1200 C.F.

Package Contents

Steam boiler, Two 3/4" NPT steam heads, Installation and operation manual, Limited warranty

Required for Operation

T100 Series or IT Series Control
